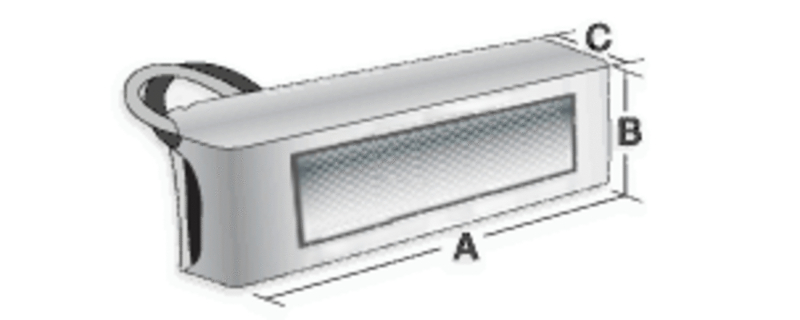

| A(mm) | 150 |
| B(mm) | 49 |
| C(mm) | 26 |

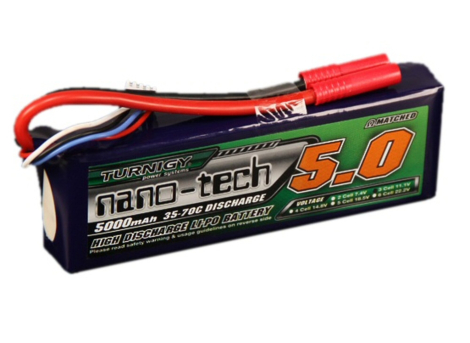

Spec.
Capacity:5000mAh
Voltage: 3S1P / 3S Cell /11.1V
Discharge: 35C Constant / 70CBurst
Weight: 409g (including wire, plug &case)
Dimensions:150x49x26mm
Balance Plug: JST-XH
Discharge Plug: 4mm Bullet-connector
Advantages over traditional Lipo batteries:
-Power density reaches 7.5 kw/kg.
-Less Voltage sag during high rate discharge, giving more powerunder load.
-Internal impedance can reach as low as 1.2mΩ compared to thatof 3mΩ of a standard Lipo batteries.
-Greater thermal control, pack usually doesnt exceed 60degC
-Thickness swelling during heavy load does not exceed 5%, comparedto 15% of a normal Lipo during heavy load.
-Higher capacity during heavy discharge. More than 90% at 100% Crate.
-Fast charge capable, up to 15C on some batteries.
-Longer Cycle Life, almost double that of standard lipolytechnology.
