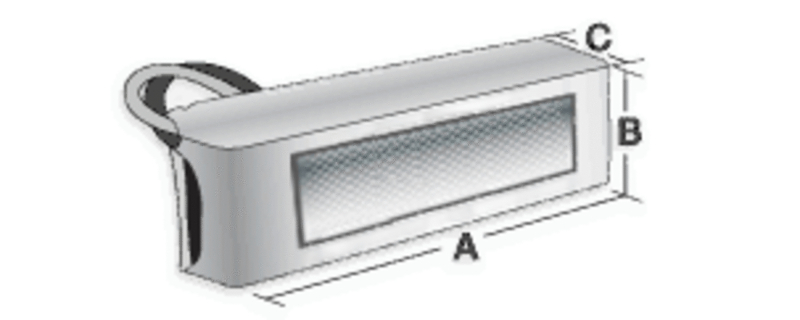

| A(mm) | 138 |
| B(mm) | 47 |
| C(mm) | 25 |

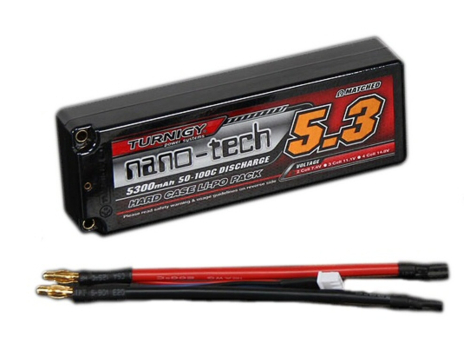

Spec.
Capacity:5300mAh
Voltage: 2S2P / 2S Cell /7.4V
Discharge: 50C Constant / 100CBurst
Charge rate: 8C
Weight: 295g (including wire &case)
Balance Plug: JST
DischargePlug: 4mm Bullet-connector to your own custom plug
Advantages over traditional Lipo batteries:
-Power density reaches 7.5 kw/kg.
-Less Voltage sag during high rate discharge, giving more powerunder load.
-Internal impedance can reach as low as 1.2mΩ compared to thatof 3mΩ of a standard Lipo batteries.
-Greater thermal control, pack usually doesnt exceed 60degC
-Thickness swelling during heavy load does not exceed 5%, comparedto 15% of a normal Lipo during heavy load.
-Higher capacity during heavy discharge. More than 90% at 100% Crate.
-Fast charge capable, up to 15C on some batteries.
-Longer Cycle Life, almost double that of standard lipolytechnology.
