Features
- 2.4GHz frequency, approx 300 meters barrier free remote control distance;
- With micro-processing technology, auto-remote control, excellent performance and high reliability;
- 7" TFT color display
- 300.000 pixel camera
- Clear night-viewing
- 24hours monitoring, calling, speaking and unlocking remote controlling etc;
- Time shown on the indoor monitor and captured pictures
- Rechargeable lithium batteries through mini USB charger
- Monitor can take/ save/ view more than 100 photos automatically
- Build-in chord melodies;

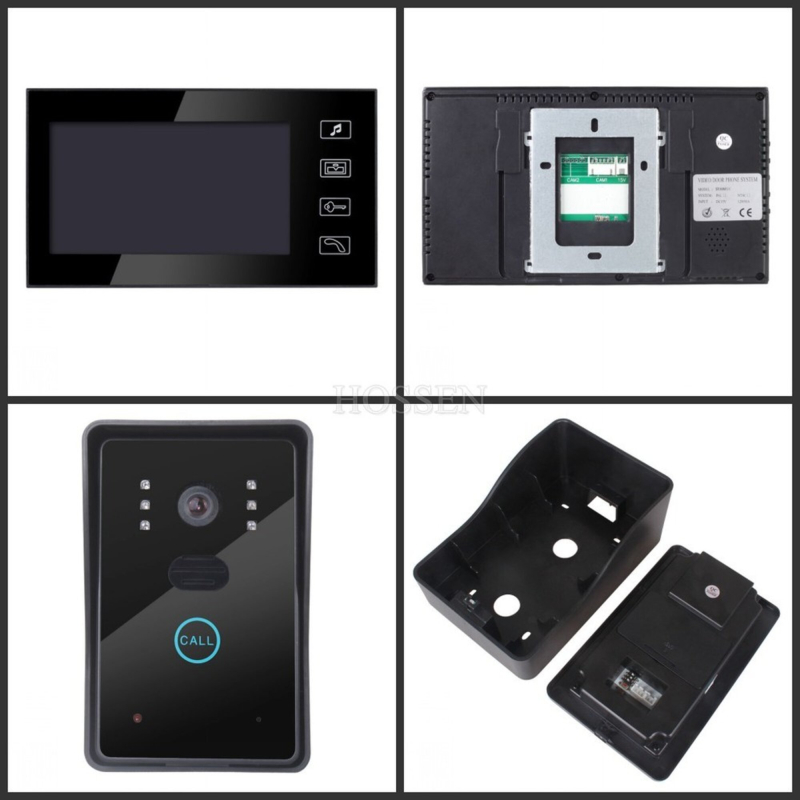

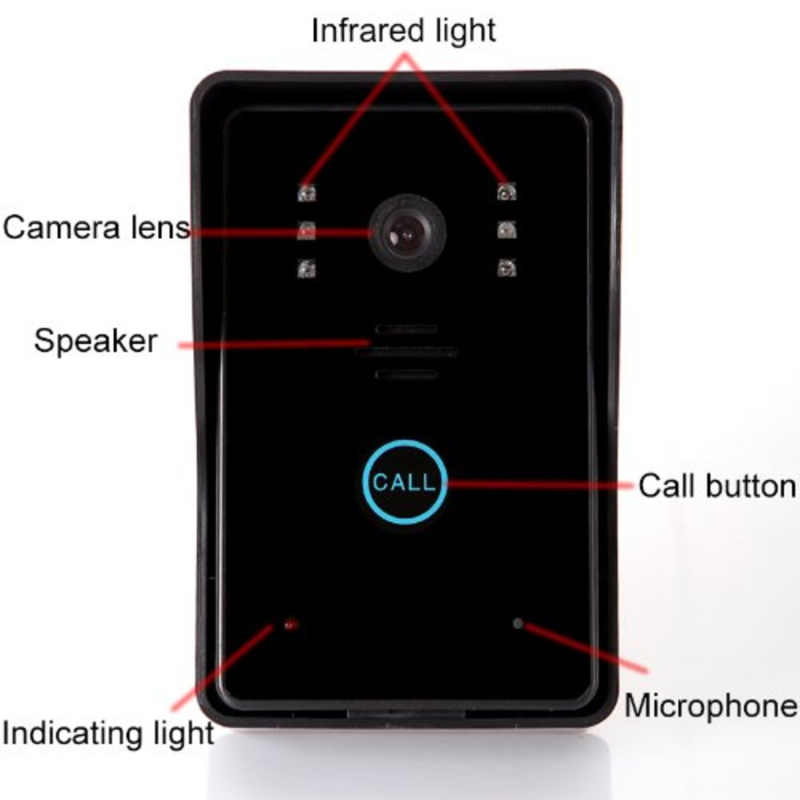

Outdoor Camera
Camera Lens: CMOS 300,000 pixel
Diagonal 92 degrees Viewing angle
Night View with 6pcs LED light / Infrared Light
Material: Piano bakes lacquer
Input power: 100-240VAC 50/60HZ
Output power: 5V; 1A
Dimensions: 168*110*65mm(L*W*H)
Lithium battery: 1320mAh; 3.7V; 4.9wh
Net Weight: 310g

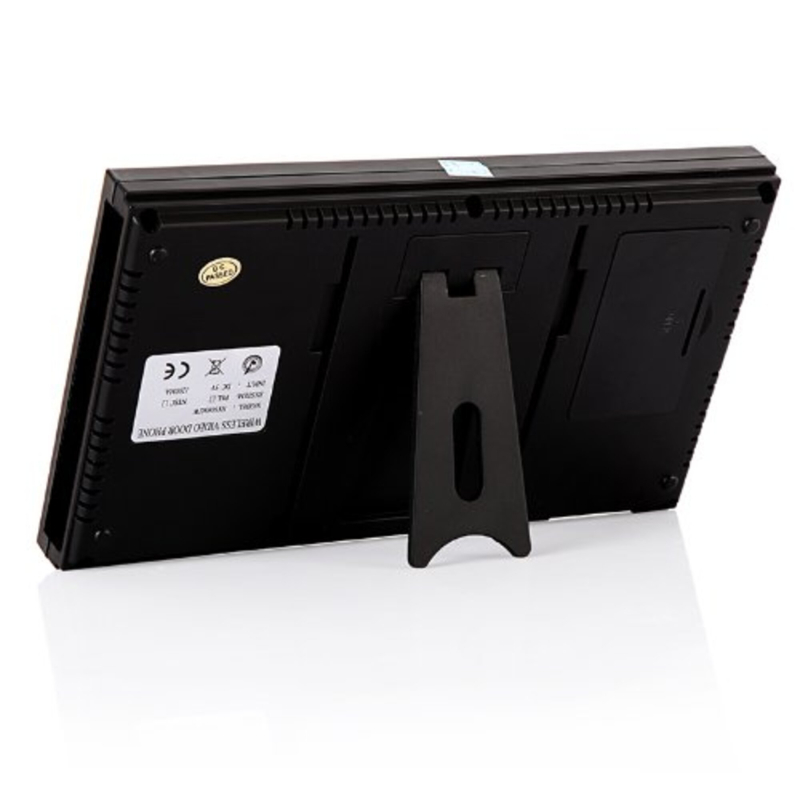

Indoor Monitor
Monitor Screen: 7 inch
Input power: 100-240VAC 50/60HZ
Output power: 5V; 1A
Battery type: 3.7V 1350mAH Li-ion battery
Battery charging time: 3 hours (5 hours for 1st time charging)
Battery standby time: 30 days (fully charged)

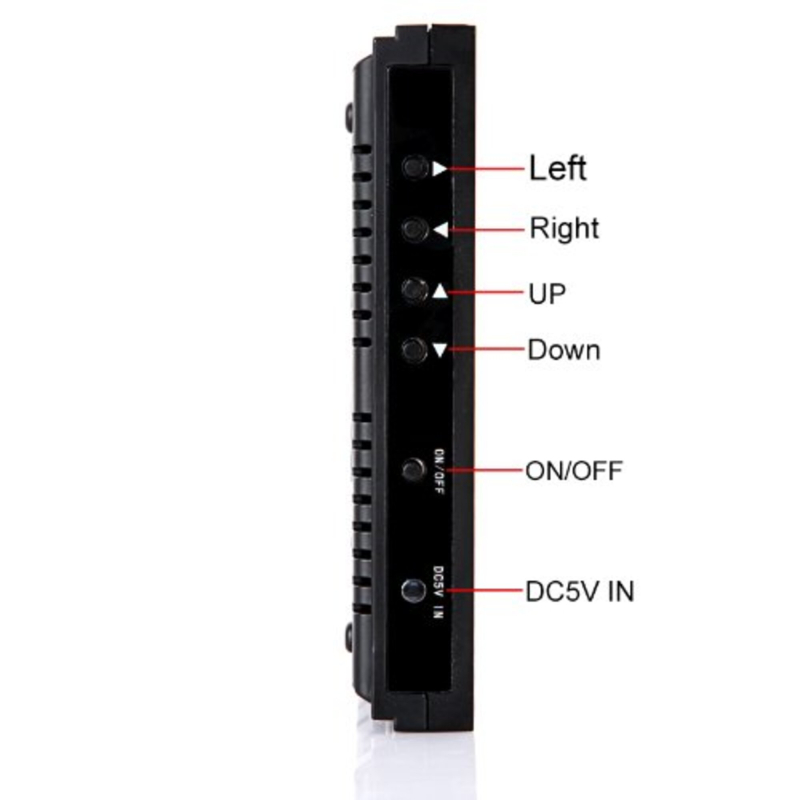

Controls: Brightness; Volume
Dimensions: 225*130*20mm(L*W*H)

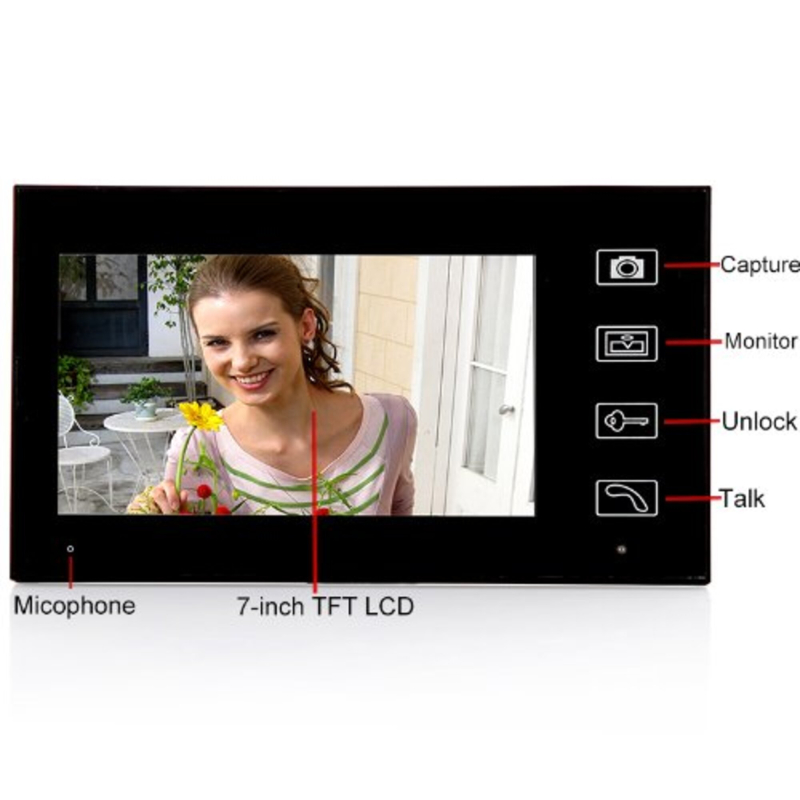

Operation
Talk and Unlock
The visitor presses the "Call" button on the outdoor camera, in door monitor will play melody and show image of thevisitor.
Press "Monitor" key to turn off the screen and enter into standby mode to ignore visitor.
Press 'Call' key to talk to the visitor, and press 'Unlock' key to open the door.
Monitor
Press 'monitor' key to wake up at the status of standby.
Take picture
Press "Capture" key to take pictures, pictures to be saved automatically after 'Call' button pressed.
Playback mode and Delete photos
Press "Capture" key for 2 seconds to enter playback mode; press left/right key to select image, and press "Capture" key to delete image, and press "Capture" key for another 2 seconds to exit playback mode.
