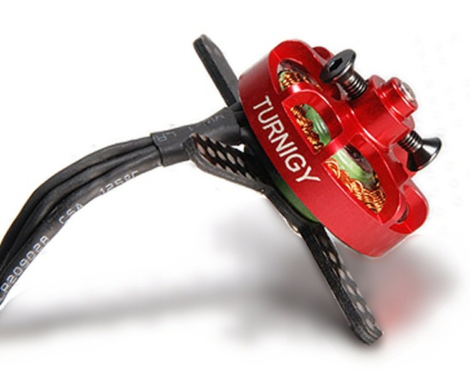

Turnigy 3020 1800KV 12A

Turnigy 3020 1800KV 12A

Varenr.: 101-0043

199,00 DKK

På lager - Levering 1-2 dage


Turnigy 3020 Børsteløs Outrunner Motor 1800KV (1800 omdr/V).
Dimension: 31mm x 23mm (including mount)
Weight: 25g (kv1800)(not including connectors)
Diameter of shaft:3mm
Lamination thickness: .2mm

Spec.
Battery: 3 Cell 3S/11.1V
RPM: 1800kv
Max current: 10~12A
No load current: 7.4V/0.6A
Current capacity: 16A/20sec
Internal resistance: 0.145ohm
Dimensions: 12x30mm

Pull: 320~450g
Prop: 6x3~9x4.7
ESC: 20A
Max Current: 14A
Battery Type: 2~3SOnly




A(mm)-
B(mm)16
C(mm)30
D(mm)  5
E(mm)21
