Features:
Small and Light Weight.
Lower Power Consumption.
High Sensitivity.
Easy Installation.
Easy to Operate.
1. Fix the hole camera on the door hole directly.

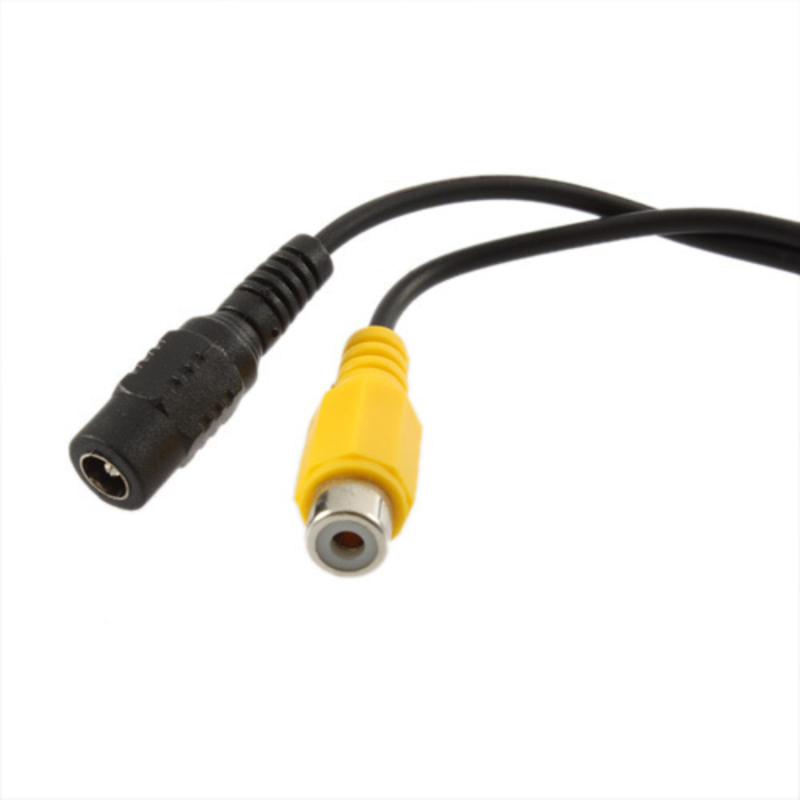

2. Connect the camera AV cable (Yellow) with the monitor
3. Connect the camera power plug to a powersupply (9-12V).
Specifications:
Image Sensor: 1/4" CMOS, 3.6mm lens.
Auto electronic exposure: 1/50-1/6000 Sec.
View Angel: 110 Degree.
B/W Illumination: 0.5Lux.
Color Illumination: 0.5Lux.
S/N Ratio:46dB.
Operation Voltage: DC 9-12V.
Current consumption:<35mA.
Length: 65-90mm
Color: Silver color
